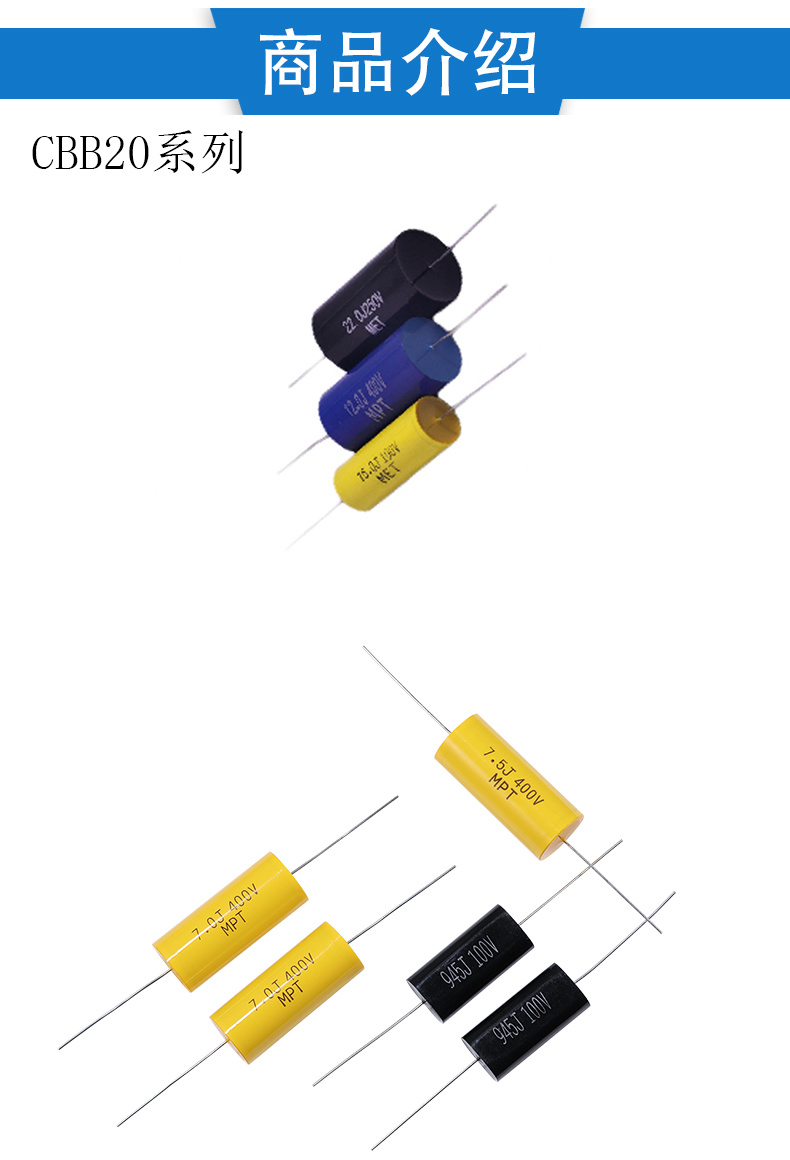

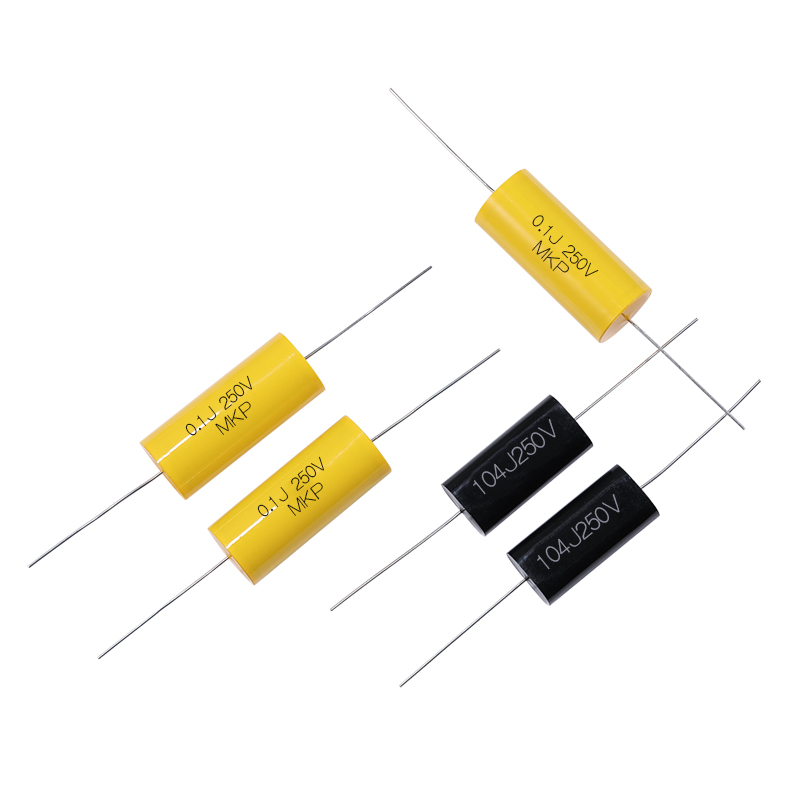

ZZEC –CBB20(MKP)金屬化聚酯丙烯薄膜電容器(軸向):
該系列具有價格優勢,體積超小,顏色有黃,黑兩種顏色可選,金屬化聚丙烯膜卷繞而成,引線軸向引出,外裹高溫膠帶,兩端阻燃性液體灌封,外型為圓型或圓柱型,噪音低,損耗小,內部溫升小,適用于各種交直流脈沖及大電流電路。如通訊設備、收音機、電視機、電源,儀器儀表等產品中。
ZZEC –CL23(MEC)超小型盒式金屬化聚酯薄膜電容器規范和外形尺寸圖
氣候類別 Climatic category | 40/100/21 |
|
|
額定電壓 Rated Voltage | 100 250V,400V,630V 1.6倍 | ||
電容量范圍 Capacitance range | 0.001~6.8 μF | ||
耐電壓 Voltage Proof | 1.6 UR | ||
絕緣電阻 Insulation resistance | ≥3 000MΩ,CR≤0.33μF | ||
≥1 00000S,CR>0.33μF | |||
(20℃,1min) | |||
損耗角正切 Dissipation Factor | ≤ 0.0008(1KHZ 23℃) |
ZZEC –CBB20(MKP)金屬化聚酯丙烯薄膜電容器(軸向):
CAP | 100VDC | 250VDC | 400VDC | |||||||||||
CODE | μF | P | W | T | H | P | W | T | H | P | W | T | H | |
103 | 0.01 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 7.5 | 10.0 10.0 | 4.5 4.5 | 8.5 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | |
10.0 | 13.0 | 4.5 | 8.5 | |||||||||||
153 | 0.015 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 7.5 | 10.0 10.0 | 4.5 4.5 | 8.5 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | |
10.0 | 13.0 | 4.5 | 8.5 | |||||||||||
223 | 0.022 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | |
333 | 0.033 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | 10.0 | 13.0 | 4.5 | 8.5 | |
473 | 0.047 | 7.5 7.5 | 10.0 10.0 | 4.5 4.5 | 8.5 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 10.0 | 10.0 13.0 | 4.5 4.5 | 8.5 8.5 | |
7.5 | 10.0 | 4.5 | 8.5 | |||||||||||
683 | 0.068 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | |
10.0 | 13.0 | 4.5 | 8.5 | 10.0 | 13.0 | 4.5 | 8.5 | 10.0 | 13.0 | 4.5 | 8.5 | |||
104 | 0.1 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 4.8 | 8.0 | 7.5 10.0 | 10.0 13.0 | 5.0 5.0 | 9.0 9.0 | |
10.0 | 13.0 | 4.5 | 8.5 | 10.0 | 13.0 | 5.5 | 15.0 | |||||||
154 | 0.15 | 7.5 10.0 | 10.0 13.0 | 4.5 4.5 | 8.5 8.5 | 7.5 10.0 | 10.0 13.0 | 4.5 4.5 | 8.5 8.5 | 7.5 10.0 | 10.0 13.0 | 6.0 5.0 | 10.0 9.0 | |
224 | 0.22 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 6.0 | 10.0 | |
10.0 | 13.0 | 5.0 | 9.0 | 10.0 | 13.0 | 5.0 | 9.0 | 10.0 | 13.0 | 6.0 | 10.0 | |||
334 |
0.33 |
7.5 |
10.0 |
5.0 |
9.0 | 15.0 7.5 | 18.0 10.0 | 5.0 6.0 | 8.0 11.0 | 15.0 7.5 | 18.0 10.0 | 5.5 8.0 | 9.5 13.0 | |
10.0 | 13.0 | 5.0 | 9.0 | 10.0 | 12.0 | 5.5 | 10.0 | 10.0 | 13.0 | 7.0 | 12.0 | |||
474 |
0.47 | 15.0 7.5 | 18.0 10.0 | 4.5 5.0 | 8.5 9.0 | 15.0 | 18.0 | 4.5 | 8.5 | 15.0
| 18.0
| 5.5
| 9.5
| |
7.5 | 10.0 | 7.0 | 12.0 | |||||||||||
10.0 | 13.0 | 5.0 | 9.5 | 10.0 | 13.0 | 6.0 | 11.0 | 10.0 | 13.0 | 8.0 | 13.5 |
684 |
0.68 | 15.0
| 18.0
| 5.0
| 9.5
| 15.0
| 18.0
| 5.0
| 10.0
| 15.0 20.0 | 18.0 23.0 | 6.0 5.5 | 11.0 10.0 |
7.5 | 10.0 | 5.0 | 9.0 | 7.5 | 10.0 | 7.5 | 13.0 | ||||||
10.0 | 13.0 | 5.0 | 9.0 | 10.0 | 13.0 | 7.0 | 12.5 | 15 | 18.0 | 7.0 | 13.5 | ||
105 |
1.0
| 15.0 7.5 | 18.0 10.0 | 8.5 5.0 | 16.0 9.5 | 20.0 7.5 | 23.0 10.0 | 9.8 9.0 | 17.8 14.0 | 20.0
15.0 20.0 | 23.0
18.0 23.0 | 6.0
8.5 7.0 | 11.5
15.0 13.0 |
10.0 15.0 | 13.0 23.0 | 5.0 8.9 | 9.5 14.0 | 10.0 15.0 | 13.0 18.0 | 8.5 6.5 | 14.0 12.0 | ||||||
20.0 | 23.0 | 5.5 | 10.5 | 20.0 | 23.0 | 5.5 | 10.5 | ||||||
155 |
1.5 |
7.5 |
10.0 |
5.5 |
11.0 | 22.5
| 26.0
| 5.5
| 11.0
| 22.5
| 26.0
| 6.5
| 13.0
|
10.0 15.0 | 13.0 18.0 | 6.0 5.5 | 11.0 10.5 | 10.0 15.0 | 13.0 18.0 | 8.5 7.5 | 16.0 14.5 |
15.0 |
18.0 |
9.0 |
16.0 | ||
225
|
2.2
| 20.0 22.5
7.5 10.0 | 23.0 26.0
10.0 13.0 | 5.5 7.0
6.5 6.5 | 10.0 12.0
12.0 12.0 | 20.0 22.5 27.5
10.0 15.0 | 23.0 26.0 31.0
13.0 18.0 | 6.0 7.0 7.0
10.0 7.0 | 13.0 12.0 14.0
17.0 15.0 | 20.0 22.5 27.5
15.0 | 23.0 26.0 31.0
18.0 | 8.5 8.0 7.0
11.0 | 15.5 14.5 14.0
19.0 |
15.0 | 18.0 | 6.5 | 14.0 | ||||||||||
20.0 22.5 27.5 | 23.0 26.0 31.0 | 6.5 6.0 7.0 | 12.0 11.0 14.0 | 20.0 22.5 27.5 | 23.0 26.0 31.0 | 10.5 8.0 7.0 | 14.0 15.0 14.0 | 20.0 22.5 27.5 | 23.0 26.0 31.0 | 9.0 9.5 9.0 | 17.5 18.0 16.0 | ||
335 | 3.3 | 7.5 10.0 15.0 | 10.0 13.0 18.0 | 7.5 7.0 7.5 | 13.5 13.0 15.0 |
20.0 |
23.0 |
8.5 |
17.5 | ||||
20.0 | 23.0 | 7.0 | 14.0 | ||||||||||
22.5 27.5
| 26.0 31.0
| 6.5 8.0 | 14.0 17.0 | 22.5 27.5 | 26.0 31.0 | 9.0 8.0 | 18.0 17.0
|
27.5 31.0 |
31.0 35.0 |
10.0 9.5 |
19.0 18.5 | ||
475 |
4.7 | 10.0 15.0 | 13.0 18.0 | 8.0 9.0 | 15.0 16.0 | ||||||||
20.0 | 23.0 | 8.5 | 15.5 | ||||||||||
685 |
6.8 | 22.5 | 26.0 | 8.0 | 15.0 | 22.5 27.5 31.0
22.5 27.5 | 26.0 31.0 35.0
26.0 31.0 | 11.0 9.5 9.0
13.0 10.0 | 20.0 19.0 18.0
23.0 21.0 | 27.5 31.0
| 31.0 35.0
| 12.0 11.0
| 23.0 21.0
|
27.5 31.0 10.0 15.0 20.0 22.5 27.5 | 31.0 35.0 13.0 18.0 23.0 26.0 31.0 | 7.0 9.0 9.5 11.0 9.5 9.0 8.0 | 14.0 18.0 17.0 19.0 18.5 18.0 17.0 | ||||||||||
31.0 | 35.0 | 7.5 | 16.5 | 31.0 | 35.0 | 10.0 | 21.0 | 31.0 | 35.0 | 12.0 | 23.0 |
